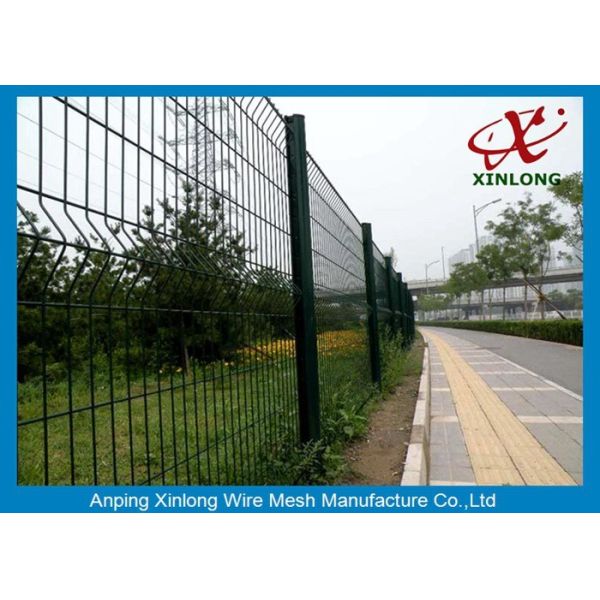

3D Curved Welded Wire Mesh Fence With 200 x 50mm Mesh Size For Garden
Characteristic:
Extraordinary and fashionable design, convenient installation, high strong quality.
The panels are welded by high quality cold drawn steel wire, after hot dipped galvanized or weld the panel with cold drawn wire directly, then to be galvanized.
With the galvanized wire panels, it needs to inspect the zinc layer and others, only the eligible items could be coated.
Panel with bends is not only refined and scientific, but also stable and durable. It can reduce the wire’s diameter by using the bends, and the fastness of the panel won’t be debase, then the cost can be reduced. It also can match with many kinds of post, and it’s well suitable for a wide range of application and easy for installation.
Specification:
| Wire Dia. | Mesh Size | Panel Width | Panel Height | Fold NO. | Post’s height | Post Model |
| Fix I | Fix II | Fix III |
| 4.0mm 4.5mm 5.0mm 5.5mm 6.0mm | 200*50mm 200*55mm 200*60mm 200*65mm | 2.0m 2.255m 2.5m 3.0m | 0.635m | 2 | 0.9 | 0.7 | 1.0 | XLFP-01 XLFP-02 XLFP-05 |
| 0.835m | 2 | 1.2 | 0.9 | 1.2 |
| 1.035m | 2 | 1.4 | 1.1 | 1.4 |
| 1.235m | 2 | 1.6 | 1.3 | 1.6 |
| 1.435m | 2 | 1.8 | 1.5 | ---- |
| 1.535m | 3 | 1.9 | 1.6 | ---- |
| 1.635m | 3 | 2.0 | 1.7 | ---- |
| 1.735m | 3 | 2.2 | 1.8 | ---- |
| 1.835m | 3 | 2.3 | 1.9 | ---- |
| 1.935m | 3 | 2.4 | 2.0 | ---- |
| 2.035m | 4 | 2.5 | 2.1 | ---- |
| 2.235m | 4 | 2.8 | 2.3 | ---- |
| 2.435m | 4 | 3.0 | 2.5 | ---- |
Design Advantage:
Extraordinary and fashionable design, convenient installation.
The fence panels are joined with post without any clamps, and it is easy and convenient.
It could insert into the sew of concrete base of 40mm width.
Usually there is the plastic caps on the top of the post.
Surface Treatment:
| Surface Treatment | Min. | Max. |
| Electric Gal. | 20g/m2 | 60g/m2 |
| Hot dipped Gal. | 35g/m2 | 700g/m2 |
| Powders Sprayed coating | 100microns | 120microns |
| PVC/PE dipped coating | 400microns | 600microns |
Range of application:
- Road and Transit ( Highway, Railway, Road, City Transit )
- Science Industry Zone ( Industry Zone, Sightseeing Zone, New pattern farm )
- Private grounds ( Courtyard, Villa )
- Public grounds ( Park, Zoo, Train or Bus Station, Lawn )
- Commercial grounds ( Corporation, Hotel, Supermarket )
Colors:
Every RAL color designed can be delivered, for example the colors corresponding to your corporate design.
Common colors:
- Dark Green RAL6005
- Pure White RAL9010
- Stone Grey RAL7030
- Jet Black RAL9005
- Anthracite Grey RAL7016
- Other RAL colors are available
